Features:

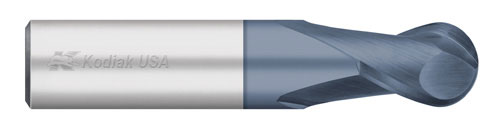

These Kodiak Cutting Tools
® ball end two flute stub length carbide end milling cutters feature a 30 helix angle and are center cutting for plunging, slotting and profiling. As with all of our solid carbide tools, these end mills are manufactured using state-of-the-art machinery, manufacturing processes and inspection techniques, making them the preferred choice of carbide endmills for machinists wanting to produce high quality parts with maximum tool life. The addition of our ALTiN coating allows for increased speeds & feeds as well as longer tool life
Premium Sub-Micrograin Solid Carbide End Mill
2 FluteBall Nose End Mill
Single End 30° HelixStub LengthCenter Cutting Carbide EndmillALTiN Coated for Increased Performance & Tool LifeMade in the USA
ALTIN Coating: A high performance coating for milling stainless
steels, carbon steels, alloy steels, and cast iron. This coating is extremely heat
resistant and can be used with or without coolant. It is exceptional in difficult
to machine materials where adhesive wear is particularly high.
View Carbide End Mill Speeds & FeedsCarbide End Mill Tolerances
| Size Range | Diameter | Shank |
| 1/64"-7/64" | +.000, -.001 | -.0001,-.0004 ISO H6 |
| 1/8"-1/2" | +.000, -.002 | -.0001,-.0004 ISO H6 |
| 9/16"-1" | +.000, -.003 | -.0001,-.0004 ISO H6 |
