Forming Taps | Metric Roll Forming Taps

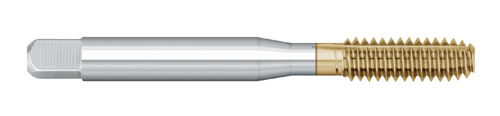

Thread Forming Roll Taps - Metric - TIN Coated

Features:

Premium High Speed Steel Metric Taps

TiN coated for better performance and increased tool life

Made in USA

Thread Forming/Roll Style Taps

Plug Tap sizes M10 and smaller have male centers

SINGLE THREAD: 1.5 Thread Chamfer For maximum thread length in blind holes due to its short chamfer
BOTTOM: 2.5 Thread Chamfer For blind hole tapping
PLUG: 4.0 Thread Chamfer For through hole tapping

THREAD FORMING:
Taps have no flutes or cutting edges & provide chipless tapping
LUBE GROOVES: For lubrication & venting in blind holes (sizes M3.5 and larger)
MATERIALS: brass, copper, lead, stainless steels, carbon steels, zinc, most ductile materials producing stringy chips are great for forming

Have a question or need help?
Call Customer Service at 1-800-892-1006
or email: sales@kodiakcuttingtools.com

Try the Tool Selector

Back to Product Index

Tip: Enter a quantity for each item, then scroll down and add to cart

Item	Size	Shank Diameter	Thread Length	Overall Length	Limit	Square Length	Thread Chamfer	Coating	In Stock	Price
5499340	M3 x 0.5	.141	5/8	1-15/16	D6	3/16	2.5	TIN	7	$20.11
5499351	M4 x 0.7	.168	3/4	2-1/8	D7	1/4	4	TIN	8	$18.67
5499362	M4 x 0.7	.168	3/4	2-1/8	D7	1/4	2.5	TIN	60	$18.67
5499373	M5 x 0.8	.194	7/8	2-3/8	D8	1/4	4	TIN	22	$18.86
5499384	M5 x 0.8	.194	7/8	2-3/8	D8	1/4	2.5	TIN	27	$18.86
5499395	M6 x 1.0	.255	1	2-1/2	D9	5/16	4	TIN	14	$20.02
5499406	M6 x 1.0	.255	1	2-1/2	D9	5/16	2.5	TIN	46	$20.02
5499417	M8 x 1.25	.318	1-1/8	2-23/32	D10	3/8	4	TIN	30	$22.90
5499428	M8 x 1.25	.318	1-1/8	2-23/32	D10	3/8	2.5	TIN	18	$22.90
5499439	M10 x 1.50	.381	1-1/4	2-15/16	D11	7/16	4	TIN	4	$25.78
5499450	M10 x 1.50	.381	1-1/4	2-15/16	D11	7/16	2.5	TIN	12	$25.78
5499461	M12 x 1.75	.367	1-21/32	3-3/8	D12	7/16	4	TIN	21	$42.00
5499472	M12 x 1.75	.367	1-21/32	3-3/8	D12	7/16	2.5	TIN	25	$42.00
5563302	M2 x 0.4	0.141	-	-	D5	-	1.5	TIN	11	$20.11
5563313	M2.5 x 0.45	0.141	-	-	D6	-	1.5	TIN	10	$20.11
5563324	M3 x 0.5	0.141	-	-	D6	-	1.5	TIN	10	$20.11
5563335	M3.5 x 0.6	0.141	-	-	D7	-	1.5	TIN	4	$18.48
5563346	M4 x 0.7	0.168	-	-	D7	-	1.5	TIN	9	$18.67
5563357	M5 x 0.8	0.194	-	-	D8	-	1.5	TIN	17	$18.86
5563368	M6 x 1.0	0.255	-	-	D9	-	1.5	TIN	17	$20.02
5563379	M8 x 1.25	0.318	-	-	D10	-	1.5	TIN	25	$22.90
5563390	M10 x 1.5	0.381	-	-	D11	-	1.5	TIN	10	$25.78
5563401	M12 x 1.75	0.367	-	-	D12	-	1.5	TIN	13	$42.00
5563478	M1.6 x 0.35	0.312	-	-	D5	-	2.5	TIN	27	$20.35
5563489	M1.7 x 0.35	0.312	-	-	D5	-	2.5	TIN	15	$20.35
