Micro 100 Quick Change - Holders & Parts - Tool Holders - Star Swiss Machines

Micro 100 Quick Change - Holders & Parts - Tool Holders - Star Swiss Machines - SR-10J

Features:

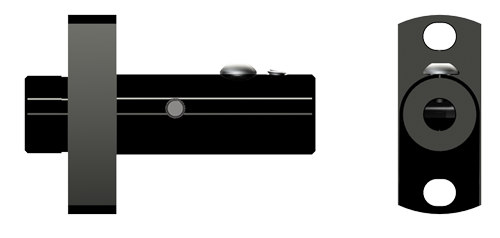

Quick change tool holder designed for use in Star swiss machine model SR-10J

Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability

Designed for use with the .1875", .2500", and .3125" diameter shank quick change tools

Qualify with quick change centerline indicating tool (QI)

Unique "3 point" locking and locating system ensures repeatability

Coolant delivered via external coolant port

Heat treated and black oxide coated for durability and corrosion resistance

Tool holder includes: hex wrench, QC-1 locating/locking screw, porting plug, straight coolant adapter

Made in the USA

Have a question or need help?
Call Customer Service at 1-800-892-1006
or email: sales@kodiakcuttingtools.com

Try the Tool Selector

Back to Product Index

Tip: Enter a quantity for each item, then scroll down and add to cart

Item	Tool Number / (Tech Link)	Shank Diameter	Overall Length	Coating	Overall Reach	Shank Length	Tool Holder Bore Diameter	Tool Holder Length	In Stock	Price
64296572	QZST-316L-SR10J	16.000 mm	2.35"	Uncoated	1.956"	0.350"	0.1875" (3/16)	1.606"	31	$296.90
64303315	QZST-416L-SR10J	DISCONTINUED	2.35"	Uncoated	1.956"	0.350"	0.2500" (1/4)	1.606"	Check Delivery	$258.95
64240340	QZST-516L-SR10J	16.000 mm	2.35"	Uncoated	1.956"	0.350"	0.3125" (5/16)	1.606"	39	$296.90
