Micro 100 Quick Change - Holders & Parts - Tool Holders - Star Swiss Machines

Micro 100 Quick Change - Holders & Parts - Tool Holders - Star Swiss Machines - SR-20RIV

Features:

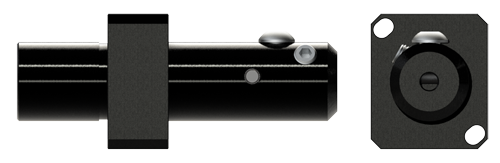

Quick change tool holder designed for use in Star swiss machine models SB-12/20R and SR-20RIV

Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability

Designed for use with the .1875", .2500", and .3125" diameter shank quick change tools

Qualify with quick change centerline indicating tool (QI)

Unique "3 point" locking and locating system ensures repeatability

Coolant delivered via external coolant port

Heat treated and black oxide coated for durability and corrosion resistance

Tool holder includes: hex wrench, QC-1 locating/locking screw, porting plug, straight coolant adapter

Made in the USA

Have a question or need help?
Call Customer Service at 1-800-892-1006
or email: sales@kodiakcuttingtools.com

Try the Tool Selector

Back to Product Index

Tip: Enter a quantity for each item, then scroll down and add to cart

Item	Tool Number / (Tech Link)	Shank Diameter	Overall Length	Coating	Overall Reach	Shank Length	Tool Holder Bore Diameter	Tool Holder Length	In Stock	Price
64286276	QZST-322L-SR20RIV	22.000 mm	3.49"	Uncoated	2.510"	0.980"	0.1875" (3/16)	1.840"	15	$308.80
64286298	QZST-422L-SR20RIV	22.000 mm	3.49"	Uncoated	2.510"	0.980"	0.2500" (1/4)	1.840"	20	$308.80
64296154	QZST-522L-SR20RIV	22.000 mm	3.49"	Uncoated	2.510"	0.980"	0.3125" (5/16)	1.840"	12	$308.80
