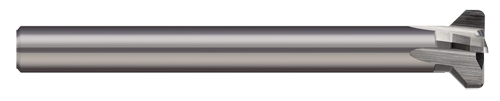

Micro 100 Thread Milling Cutters - Thread Relief Cutter

Features:

Designed for milling thread relief at the bottom of a thread

Relief operation typically done before threading to avoid thread form damage

Chamfer eliminates burrs and partial threads at last thread

Carbide head brazed to carbide shank

CNC ground in the USA

Have a question or need help?
Call Customer Service at 1-800-892-1006
or email: sales@kodiakcuttingtools.com

Try the Tool Selector

Back to Product Index

Tip: Enter a quantity for each item, then scroll down and add to cart

Item	Tool Number / (Tech Link)	Cutter Diameter	Shank Diameter	Length of Cut	Overall Length	Coating	Additional Features	Additional Features	In Stock	Price
64262186	MTR-001	1.0000" (1)	0.5000" (1/2)	0.250" (1/4)	3.25" (3-1/4)	Uncoated	Flutes: 7, Corner Radius: 0.015" (1/64), Cutter Width: 0.250" (1/4)	Flat Width: 0.125" (1/8), Shank Length: 3.000" (3), :	5	$187.50
64275584	MTR-375	0.3750" (3/8)	0.2500" (1/4)	0.141"	2.64"	Uncoated	Flutes: 4, Corner Radius: 0.010", Cutter Width: 0.141"	Flat Width: 0.075", Shank Length: 2.500" (2-1/2), :	26	$95.00
64270117	MTR-500	0.5000" (1/2)	0.3125" (5/16)	0.195"	2.72"	Uncoated	Flutes: 5, Corner Radius: 0.010", Cutter Width: 0.195"	Flat Width: 0.100", Shank Length: 2.500" (2-1/2), :	Check Delivery	$115.90
64270128	MTR-750	0.7500" (3/4)	0.3750" (3/8)	0.250" (1/4)	2.75" (2-3/4)	Uncoated	Flutes: 6, Corner Radius: 0.015" (1/64), Cutter Width: 0.250" (1/4)	Flat Width: 0.125" (1/8), Shank Length: 2.500" (2-1/2), :	19	$143.70
